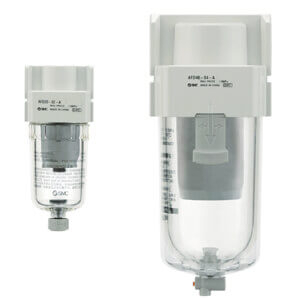

Other pneumatic drive SMC AFD20-F01C-A

Modular style Micro Mist Separator
Nominal filtration rating 0.01 µm
Maximum flow rate up to 600 l/min (ANR, 0.7MPa)
Connection size from 1/8 to 1
Easy replacement and reduced required maintenance space
Float type auto drain option.

•New Style modular air filter

Prevents contamination

Lighter weight than old style modular AF

Thickness reduction of resin case provides increased capacity
•(approx. 1.3 times more).

Improved water separation efficiency extends the service life of
•filter elements

Rc, NPT or G(PF) type threads

Made to Order 1: None
Size: 20
Thread: F (G)
Port Size: 01 (1/8)
Accessory: C [Float Type Auto Drain (N.C.)]
Bowl: Polycarbonate Bowl
Drain port/Exhaust mechanism/Flow direction: None
Pressure Unit: Name Plate and Pressure Gauge
Made to Order 2: None
