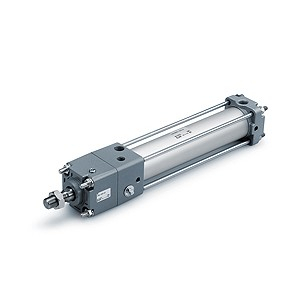

Cylinder with piston rod SMC CNA2-100D-UA
Double-Acting Cylinder
See technical informationSee documentsReferences
SMC:CNA2-100D-UA
Rubix:SMC-CNA2-100D-UA
EAN:3618035745048
Technical specifications
| Cylinder diameter | 100 mm |
|---|---|
| Cylinder stroke | 100 mm |
| Type | double-acting cylinder |
Documents
Product details : LOCK UNIT ASSY
The CNA2 series cylinder with lock is suitable for mid-stroke stops, emergency stops, and drop prevention. An equal holding force in extending and retracting directions make it possible to lock at either end of the stroke. High reliability and stable holding force are maintained by using a substantially lengthened brake shoe with superior wear resistance. The locking mechanism is isolated from lock release air, so lock function is not diminished by excessive dirt or drain in compressed air
Strengths
•Double acting, single rod cylinder w/lock
Mounting: basic, axial foot, rod flange, head flange, single clevis, double clevis, center trunnion
Auto switch capable
Mounting: basic, axial foot, rod flange, head flange, single clevis, double clevis, center trunnion
Auto switch capable
Technical specifications
Attributes
| Logistic Weight | 7550 g |
|---|---|
| Cylinder diameter | 100 mm |
| Cylinder stroke | 100 mm |
| Type | double-acting cylinder |
| Max. temperature | 60 °C |
| Max. service pressure | 10 bar |
| Material | aluminum alloy hard anodized |
Show UNSPSC/ECL@SS
€ 695.21 excl. VAT
/ Each
€ 855.11 incl. VAT
- Available - Delivery date on request
